Fresh Air Exchanger
Product Series:
Heat Recovery Fresh Air Ventilator - Large Commercial
I. Working Principle
A total heat exchanger within the main unit facilitates energy recovery during the exchange between indoor exhaust air and outdoor fresh air. It recovers the cooling or heating energy from the exhaust air and uses it to pre-cool or pre-heat the incoming fresh air. This process effectively reduces energy loss and significantly lowers the operational energy consumption of the air conditioning system.
II. Main Types
Sensible Heat Recovery Wheel: Made of metal, it recovers only sensible heat (temperature) from the air. Suitable for applications where the primary need is temperature recovery or where moisture transfer must be avoided.
Total (Enthalpy) Heat Recovery Wheel: The wheel surface is coated with a hygroscopic material, enabling the simultaneous recovery of both sensible heat and latent heat (moisture). This significantly reduces the subsequent dehumidification or humidification load on the fresh air system.
III. Key Product Features
High Efficiency & Energy Saving: Total heat recovery efficiency typically reaches 60%-85% or higher, delivering significant energy recovery.
Air Purification: Equipped with multi-stage filtration systems (e.g., primary filters, activated carbon, negative ion generators) to effectively filter particulates, adsorb harmful gases and microorganisms, and improve indoor air quality.
Intelligent Operation: Offers multiple operating modes that can be flexibly switched according to different seasons and climatic conditions, adapting to diverse environmental needs.
Health & Safety: The fresh air and exhaust air passages within the total heat exchanger core are completely isolated, ensuring 100% airflow separation to eliminate the risk of cross-contamination.
IV. Typical Application Scenarios
Commercial Spaces: Large shopping malls, department stores, hotels, etc., meeting the ventilation and energy-saving requirements of expansive areas.
Public Buildings: Schools, gymnasiums, theaters, transportation hubs, and other high-occupancy venues, providing ample fresh air
while controlling energy consumption.
Industrial Facilities: Workshops in electronics, pharmaceuticals, food processing, and other industries with strict temperature, humidity,
and high-volume ventilation requirements, fulfilling their environmental control and ventilation needs.

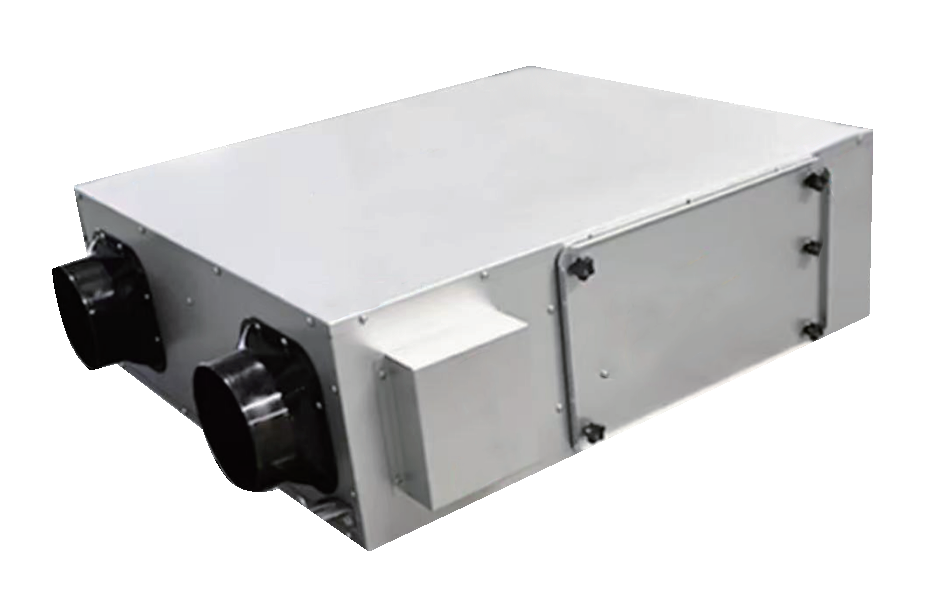

Heat Recovery Fresh Air Ventilator - Small & Light Commercial
Features
Airflow Range: 200 m³/h – 2,000 m³/h
Coverage Area: Suitable for rooms sized 60 – 2,000 ㎡
Intelligent Control: Equipped with a remote control panel for flexible placement
Environmental Monitoring: Features bypass function with automatic monitoring of PM2.5, CO₂, and other air quality indicators
High-Efficiency Core: Built-in energy-efficient heat exchanger
Customization Service: Tailored solutions available based on specific user requirements.

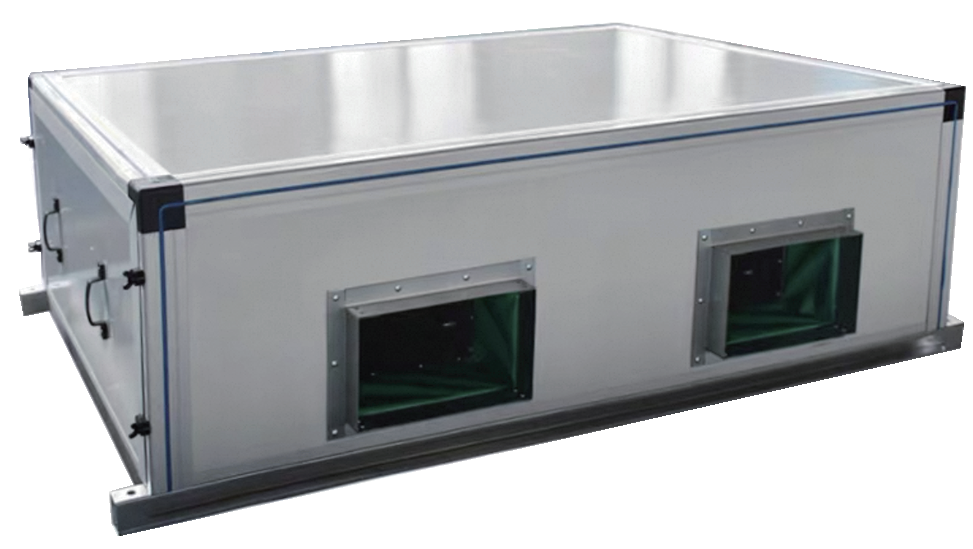

Heat Recovery Fresh Air Ventilator - Medium Commercial
Features
Airflow Range: 2,600 m³/h – 10,000 m³/h
Coverage Area: Suitable for spaces sized 2,000 – 10,000 ㎡
Control Method: Utilizes a remote control panel for flexible installation
Intelligent Monitoring: Features bypass function with automatic monitoring of PM2.5, CO₂, and other air quality indicators
Primary Applications: Ideal for open-plan offices, lobbies, computer rooms, meeting rooms, PBX rooms, and similar environments
Customization Service: Tailored solutions available based on specific customer requirements.
